MultiPortal Support does not cover High Availability unless they have been deployed by MultiPortal Professional Services team.

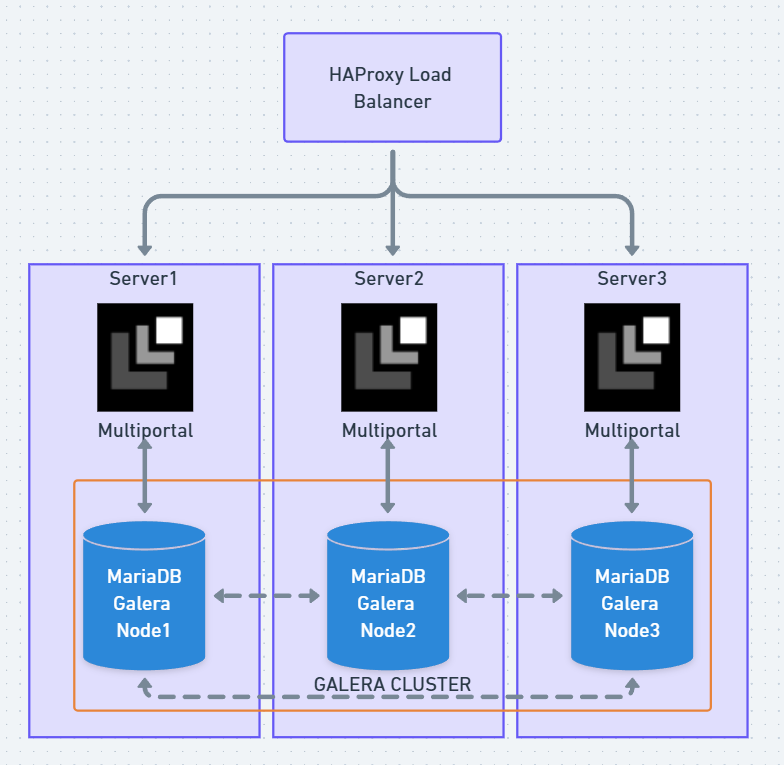

This article shows how to install MultiPortal on HA configuration. With this setup, you can deploy front facing HAProxy Load Balancer to distribute workload.
¶ Prerequisites
3 virtual or physical machines with OS installed. (for this guide, we use Ubuntu 24.04)
Internet Connectivity
¶ Instructions
¶ Install MultiPortal on 3 nodes
Install MultiPortal following the guide Ubuntu | MultiPortal or Installation Guide | MultiPortal.
For this guide, we used the FQDN for servers below
mpha004.lab.multiportal.io
mpha005.lab.multiportal.io
mpha006.lab.multiportal.io
Login to 3 nodes and install required packages by running command below
apt update
apt install mariadb-server galera-arbitrator-4 mariadb-backup -yOnce Installed, login to node 2 (mpha005) and run commands below
login as root by running command below
sudo -irun the command below to delete the database on node 2 and node 3
mariadb -u root -e "DROP DATABASE multiportal;"stop the services
systemctl stop caddy.service
systemctl stop multiportal.service
systemctl stop mariadb.servicerepeat steps above on node 3 (mpha006)
Login to node1 (mpha004) create mariabackup user and configure galera cluster
login as root by running command below
sudo -icreate log directory
mkdir /var/log/mariadb
chown mysql:mysql /var/log/mariadbcreate mariabackup user by running commands below
mariadb -u root -e 'create user "mariabackup"@"%" identified by "b@ckup123!";'
mariadb -u root -e 'GRANT RELOAD, PROCESS, LOCK TABLES, REPLICATION CLIENT ON *.* TO "mariabackup"@"%";'
mariadb -u root -e 'create user "mariabackup"@"localhost" identified by "b@ckup123!";'
mariadb -u root -e 'GRANT RELOAD, PROCESS, LOCK TABLES, REPLICATION CLIENT ON *.* TO "mariabackup"@"localhost";'
mariadb -u root -e 'flush privileges;'modify server config file by running command below
cat <<EOL >> "/etc/mysql/mariadb.conf.d/50-server.cnf"
log_warnings=2
log_error=/var/log/mysql/mariadb.err
general_log = 1
general_log_file = /var/log/mysql/mariadb.log
[mariabackup]
user=mariabackup
password='b@ckup123!'
databases-exclude=lost+found
EOLconfigure mariadb galera cluster by editing the file /etc/mysql/mariadb.conf.d/60-galera.cnf
#
# * Galera-related settings
#
# See the examples of server wsrep.cnf files in /usr/share/mysql
# and read more at https://mariadb.com/kb/en/galera-cluster/
[galera]
# Mandatory settings
wsrep_on = ON
wsrep_cluster_name = "galera_cluster"
wsrep_cluster_address = "gcomm://NODE1IP,NODE2IP,NODE3IP" #configurethis
wsrep_provider=/usr/lib/galera/libgalera_smm.so
binlog_format = row
default_storage_engine = InnoDB
innodb_autoinc_lock_mode = 2
# Allow server to accept connections on all interfaces.
bind-address = 0.0.0.0
# Optional settings
wsrep_slave_threads = 1
innodb_flush_log_at_trx_commit = 0
wsrep_sst_auth = mariabackup:manager
wsrep_sst_method = mariabackup
wsrep_node_address = THISNODEIP #configurethis
wsrep_sst_receive_address= THISNODEIP #configurethissample configuration:
#
# * Galera-related settings
#
# See the examples of server wsrep.cnf files in /usr/share/mysql
# and read more at https://mariadb.com/kb/en/galera-cluster/
[galera]
# Mandatory settings
wsrep_on = ON
wsrep_cluster_name = "galera_cluster"
wsrep_cluster_address = "gcomm://192.168.112.204,192.168.112.205,192.168.112.206"
wsrep_provider=/usr/lib/galera/libgalera_smm.so
binlog_format = row
default_storage_engine = InnoDB
innodb_autoinc_lock_mode = 2
# Allow server to accept connections on all interfaces.
bind-address = 0.0.0.0
# Optional settings
wsrep_slave_threads = 1
innodb_flush_log_at_trx_commit = 0
wsrep_sst_auth = mariabackup:manager
wsrep_sst_method = mariabackup
wsrep_node_address = 192.168.112.204
wsrep_sst_receive_address= 192.168.112.204stop mariadb service by running command below
systemctl stop mariadb.servicebootstrap the new cluster by running command below
galera_new_clusterverify if cluster is running by running command below
ps -f -u mysqlThe start position on the very first start should look like the following.
UID PID PPID C STIME TTY TIME CMD
mysql 89612 1 0 02:36 ? 00:00:01 /usr/sbin/mariadbd --wsrep-new-cluster --wsrep_start_position=00000000-0000-0000-0000-000000000000:-1Configure the .env file on all nodes
login to node1 and get the DB_PASS details by running command below
cat /var/www/CURRENTNODEFQDN/.env | grep DB_PASSLogin to node 2 and node3. Modify the DB_PASS entry on /var/www/CURRENTNODEFQDN/.env
vi /var/www/CURRENTNODEFQDN/.envThis step ensures that the DB_PASS on node1 (.env), will be copied to node2 and node3.
Join node 2 to galera cluster
login as root by running command below
sudo -icreate log directory
mkdir /var/log/mariadb
chown mysql:mysql /var/log/mariadbmodify server config file by running command below
cat <<EOL >> "/etc/mysql/mariadb.conf.d/50-server.cnf"
log_warnings=2
log_error=/var/log/mysql/mariadb.err
general_log = 1
general_log_file = /var/log/mysql/mariadb.log
[mariabackup]
user=mariabackup
password='b@ckup123!'
databases-exclude=lost+found
EOLconfigure mariadb galera cluster by editing the file /etc/mysql/mariadb.conf.d/60-galera.cnf
#
# * Galera-related settings
#
# See the examples of server wsrep.cnf files in /usr/share/mysql
# and read more at https://mariadb.com/kb/en/galera-cluster/
[galera]
# Mandatory settings
wsrep_on = ON
wsrep_cluster_name = "galera_cluster"
wsrep_cluster_address = "gcomm://NODE1IP,NODE2IP,NODE3IP" #configurethis
wsrep_provider=/usr/lib/galera/libgalera_smm.so
binlog_format = row
default_storage_engine = InnoDB
innodb_autoinc_lock_mode = 2
# Allow server to accept connections on all interfaces.
bind-address = 0.0.0.0
# Optional settings
wsrep_slave_threads = 1
innodb_flush_log_at_trx_commit = 0
wsrep_sst_auth = mariabackup:manager
wsrep_sst_method = mariabackup
wsrep_node_address = THISNODEIP #configurethis
wsrep_sst_receive_address= THISNODEIP #configurethissample configuration:
#
# * Galera-related settings
#
# See the examples of server wsrep.cnf files in /usr/share/mysql
# and read more at https://mariadb.com/kb/en/galera-cluster/
[galera]
# Mandatory settings
wsrep_on = ON
wsrep_cluster_name = "galera_cluster"
wsrep_cluster_address = "gcomm://192.168.112.204,192.168.112.205,192.168.112.206"
wsrep_provider=/usr/lib/galera/libgalera_smm.so
binlog_format = row
default_storage_engine = InnoDB
innodb_autoinc_lock_mode = 2
# Allow server to accept connections on all interfaces.
bind-address = 0.0.0.0
# Optional settings
wsrep_slave_threads = 1
innodb_flush_log_at_trx_commit = 0
wsrep_sst_auth = mariabackup:manager
wsrep_sst_method = mariabackup
wsrep_node_address = 192.168.112.205
wsrep_sst_receive_address= 192.168.112.205restart mariadb service by running command below
systemctl restart mariadb.serviceverify if cluster is running by running command below
ps -f -u mysqlOutput should look like the following.
UID PID PPID C STIME TTY TIME CMD
mysql 89612 1 0 02:36 ? 00:00:01 /usr/sbin/mariadbd --wsrep-new-cluster --wsrep_start_position=00000000-0000-0000-0000-000000000000:-1Run the command below to see if it joined successfully
mariadb -u root -e "show global status like 'wsrep_cluster_size';"Output should look like the following
+--------------------+-------+
| Variable_name | Value |
+--------------------+-------+
| wsrep_cluster_size | 2 |
+--------------------+-------+Repeat Step6 on node3
verify if cluster is running by running command below
ps -f -u mysqlOutput should look like the following.
UID PID PPID C STIME TTY TIME CMD
mysql 89612 1 0 02:36 ? 00:00:01 /usr/sbin/mariadbd --wsrep-new-cluster --wsrep_start_position=00000000-0000-0000-0000-000000000000:-1Run the command below to see if it joined successfully
mariadb -u root -e "show global status like 'wsrep_cluster_size';"Output should look like the following
+--------------------+-------+
| Variable_name | Value |
+--------------------+-------+
| wsrep_cluster_size | 3 |
+--------------------+-------+Start Services
run this command on all nodes
systemctl status multiportal
systemctl start caddyYou may now access MultiPortal on any node URL http://nodefqdn/ and start with the configuration of users
